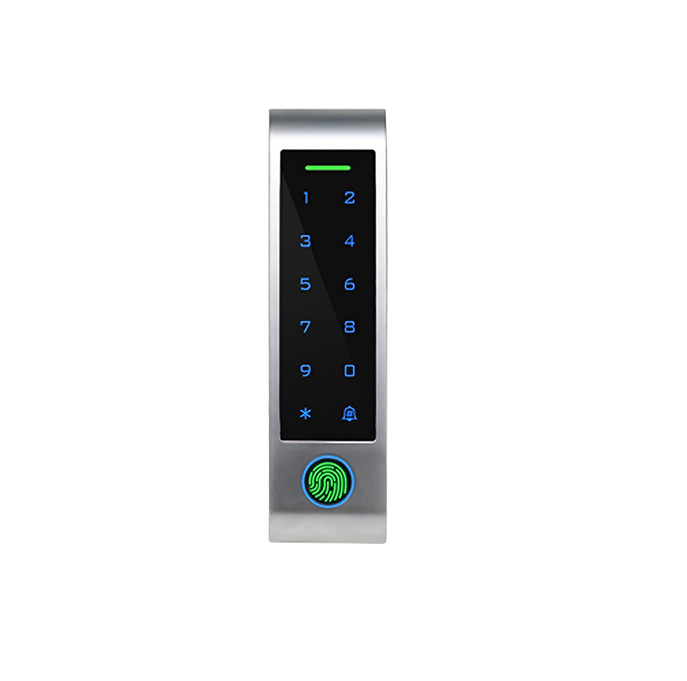

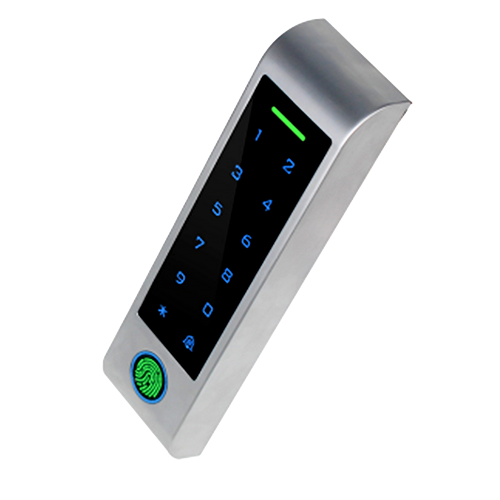

MK-V1 is a standalone access control device made of zinc alloy with an IP66 protection rating, ensuring the device operates round-the-clock in all weather conditions. MK-V1 offers verification methods including RFID cards, PIN codes and fingerprint (optional). It supports two card modules which include 125kHz and 13.56MHz, granting more flexibility for access control function.
Features
• Resist a harsh operating environment with zinc alloy housing material.
• Available card modules:125 kHz ID card and 13.56MHz IC card.
• Achieved IP66 ingress protection rating, indicate its capabilities of waterproof and dustproof.
• Enhance flexibility, MK-V1 can use as Wiegand reader with LED & buzzer output.
• Embedded with a light-dependent resistor (LDR) for tamper detection.
| Transaction Capacity | 1,000(Standard ) |
|---|---|
| ID Card Capacity | 888 (1:N) (Standard ) |
| Authentication Method | Card / Password |
| Password Capacity | 6 Digits |
| Hardware | CPU: CKSF030 |
| Card Type | ID & IC (125 kHz & 13.56 MHz Dual Frequency) |
| Communication | Wi-Fi (IEEE802.11n/b/g) @ 2.4 GHz |
| Standard Functions | Access Control, Buzzer, LED (Green: verification successful ; Red: Normal Status ; Blue: |
| Supported Software | Mobile App: ZSmart (Mobile Credential) |
| Certifications | ISO9001, ISO14001, CE, RoHS, FCC |
