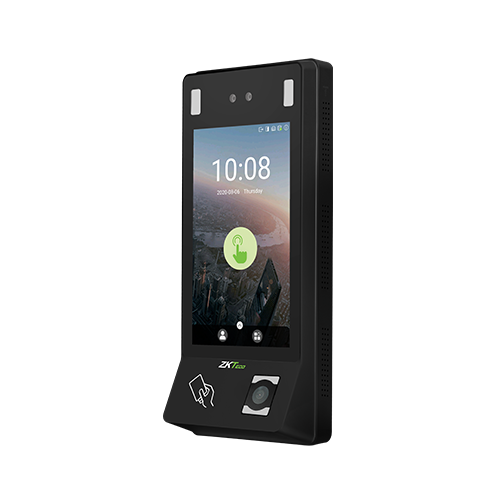

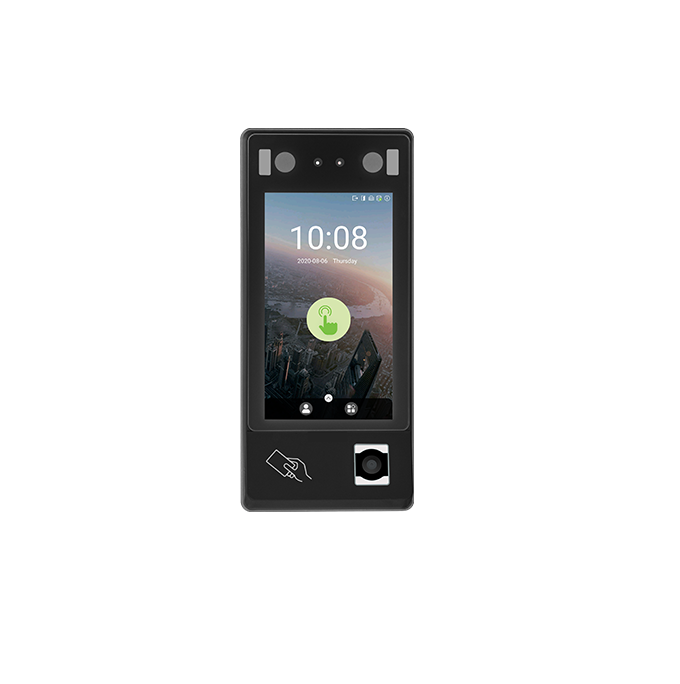

G4L

4G Multi-Biometric Access Control Terminal With a Multi-tech Card Module

G4 Pro is equipped with a fully upgraded version of the Android 9.0 system, adding new features such as PoE power supply, and it is compatible with 4G network, satisfying various market needs including Europe, the Middle East, Africa, South Korea, Thailand, and India

Features

• Compatible with 4G network optional, supported E.U. , UAE, Africa, South Korea, Thailand, India, etc.

• Scanning of T&A/A&C dynamic QR codes on the ZKBio CVSecurity Mobile App

• Open Supervised Device Protocol (OSDP v2.1.7)

• Dual-frequency (125kHz and 13.56MHz) card module (standard)

• Support Multi-tech card module (optional)

• Android LCDP for the 3rd-party application integration

• IEEE 802.3af/at PoE (Power over Ethernet) power supply

• Mask detection

• Anti-spoofing algorithm against print attack (laser, color, and B/W photos) and video attack

User Capacity

50,000 Users

Transaction Capacity

1,000,000 Transactions

CPU

64bit Octa- core Customized Computer
Vision 1.8GHz CPU

Camera

2MP Binocular Camera

Communication

TCP/IP, USB Host, RS485*, Wiegand Input,
Wiegand Output, Wi-Fi, Bluetooth, 4G(optional)
WLAN: 2.4G, 802.11 b/g/n
Bluetooth: BT2.1+EDR/3.0/4.1 LE/4.2 BLE
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
GSM: 1800/1900MHz

Dimension

264mm*120mm*51mm (9.69in*4.72in*2in)

Face Capacity

50,000 Faces

Fingerprint Capacity

30,000 Fingerprints

Fingerprint Sensor

Z-ID Fingerprint Sensor

ID Card

50,000 Cards

Interfaces of Access Control

RS485 (OSDP v2.1.7), Wiegand In/Out, Lock
Relay Output, Exit Button, Alarm Output,
Auxiliary Input, Door Sensor, External Bell

Supported Software

easy TimePro
ZKBio CVSecurity
