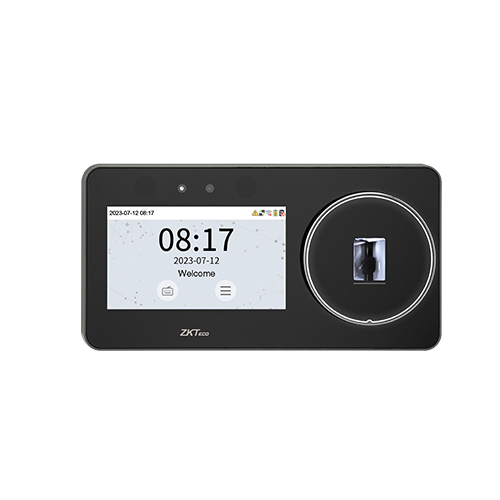

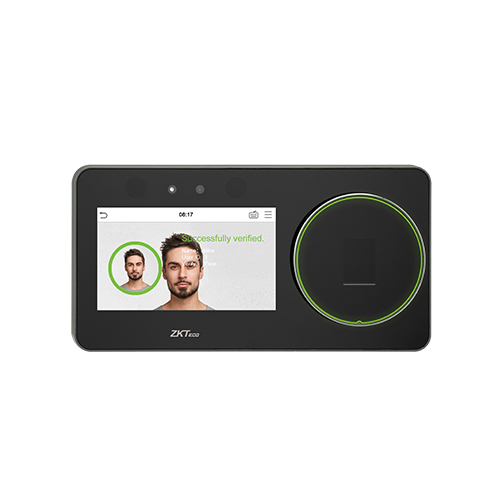

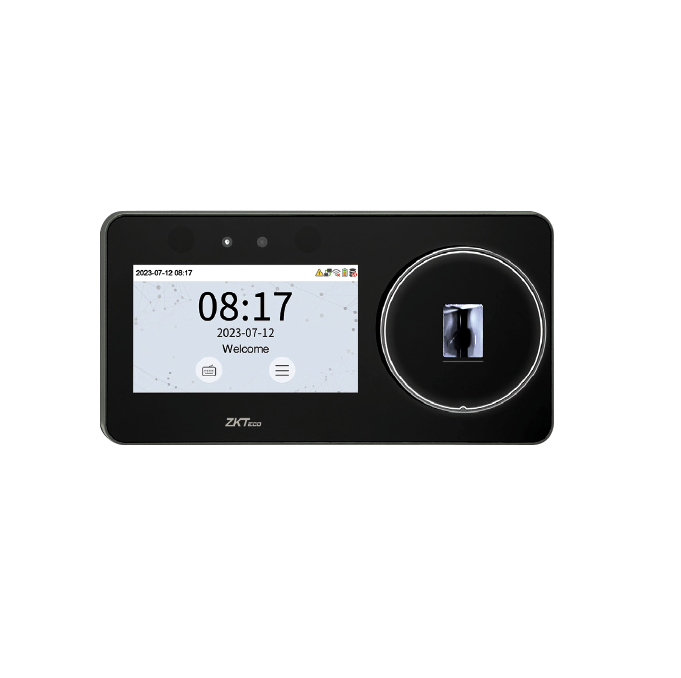

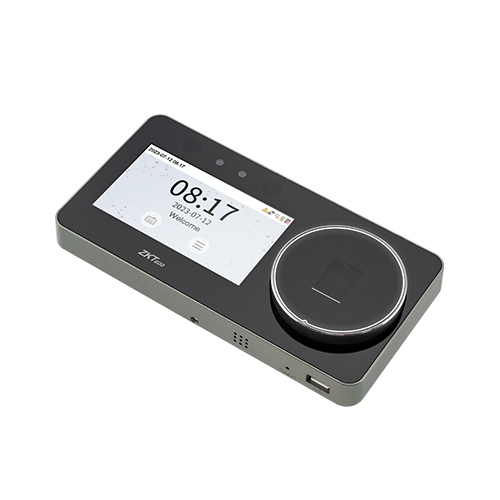

FaceDepot 4A

FaceDepot 4A

FaceDepot 4A is a Linux based hybrid biometric time and attendance terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. FaceDepot 4A utilizes deep learning algorithms to perform visible light facial recognition from 0.3 to 2 meters, even in dark or low-light conditions. Also, the terminal enhances pose angle tolerance and antispoofing measures. Additionally, FaceDepot 4A combines with ZKTeco’s biometric authentication technologies, multiple verification methods and versatile Wi-Fi / 4G connectivity to meet customers’ diverse needs, offering accurate verification.

• Visible Light Facial Recognition, also support masked individual identification.

• Visible Light Facial Recognition in dimly lit environment even without supplement light.

• Anti-spoofing algorithm against print attack (laser,color and B/W photos),videos attack and 3D mask attack. • Multiple verification methods: Face / Fingerprint / Card / Password.

• Optional card modules: 125 kHz ID Card (EM / HID Prox), 13.56 MHz IC Card, ID & IC & DESFire EV1 / EV2 (125 kHz & 13.56 MHz Dual Frequency).

• Communication: TCP/IP, USB-Host, 4G (Optional), PoE (Optional), Wi-Fi (Optional).

• Advance access control functions ( Wiegand input/output; RS485 communication; Electric Lock; Door Sensor; Exit Button; Alarm Output)

Category:
Request Quote
Display

4.3"@ TFT Color Touch LED Screen (480*800)
Hardware

CPU: Quad Core@1.2GHz
RAM: 1GB; ROM: 8GB
Speaker: 8 ohm @1 W
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint
Authentication Method

Fingerprint / Face / Card / Password (Virtual Keypad)
Biometrics Algorithm

ZKFace V6.0
ZKFingerprint V10.0
Camera

Binocular Camera @ 2MP WDR
Communication

TCP / IP*1
Wi-Fi (IEEE802.11a / b / g / n / ac) @ 2.4 GHz / 5 GHz (Coming soon)
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1,
User Capacity

10,000 (1:N) (Standard)
Card Capacity

10,000 (1:N) (Optional)
Card Type

ID Card@125 kHz (Optional)
HID Prox@125 kHz (Optional)
IC Card@13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1/EV2; (125 kHz & 13.56 MHz Dual Frequency)
Face Template

10,000 (1:N) (Standard)
Fingerprint Template Capacity

10,000 (1:N) (Standard)
Operation System

Linux
Optional Functions

Wi-Fi, 4G, Backup Battery, PoE
Standard Functions

WorkCode, ADMS, DST, T9 Keyboard (Input), Photo Capture, Event Photo Capture,
14-digit User ID, Schedule Bell, Record Query, Tamper Switch Alarm, Photo ID, Multiple Verification Methods, External Printer, HTTPs / SSH Backend Access, 12V Output
Supported Software

easy TimePro / ZKBio CVSecurity (T&A Module)
Power Supply

DC 12V 3A
PoE: IEEE 802.3af
Backup Battery
