| Display | 2.4-inch TFT LCD Color Screen |
|---|---|
| Fingerprint Capacity | 3,000 |
| Functions | DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional) |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Algorithm Version | ZK Finger 10.0 |
| Card Capacity | 5000(Optional) ID/IC/HID Prox/HID iclass card |
| Communication | RS232/485, TCP/IP, USB-host |
| Dimensions(L*W*D) | 80 × 183 × 42mm (W*D*H) |
| Supported Software | Standalone SDK,ZKAccess3.5 software |
| Power Supply | 12V DC, 3A |
Standalone Devices

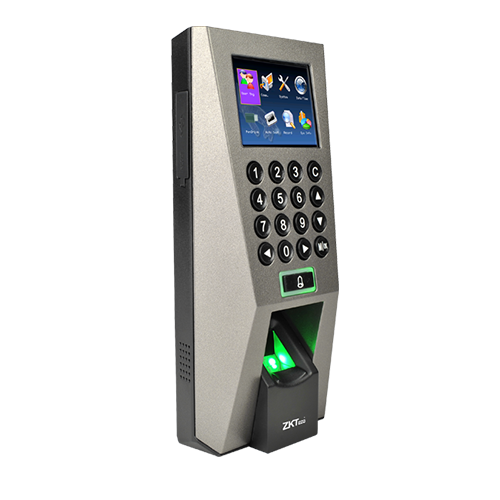

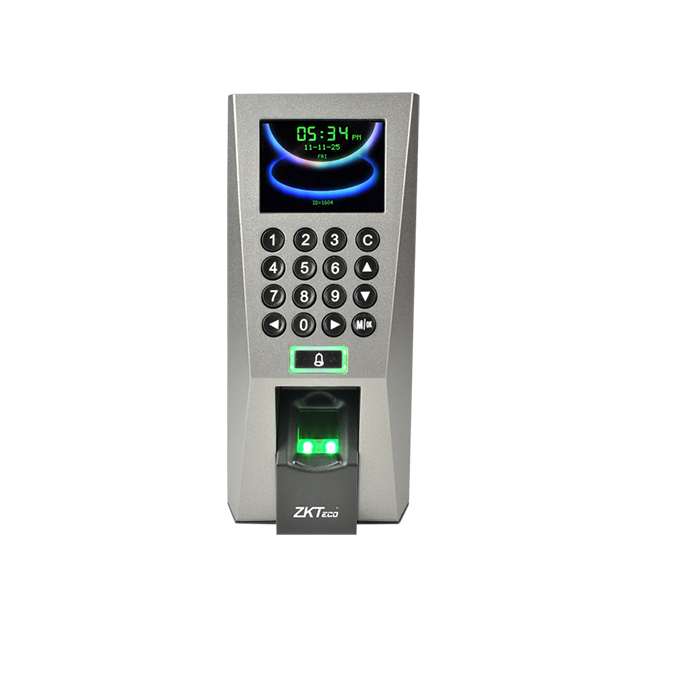

F18
F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency.
