F09

F09

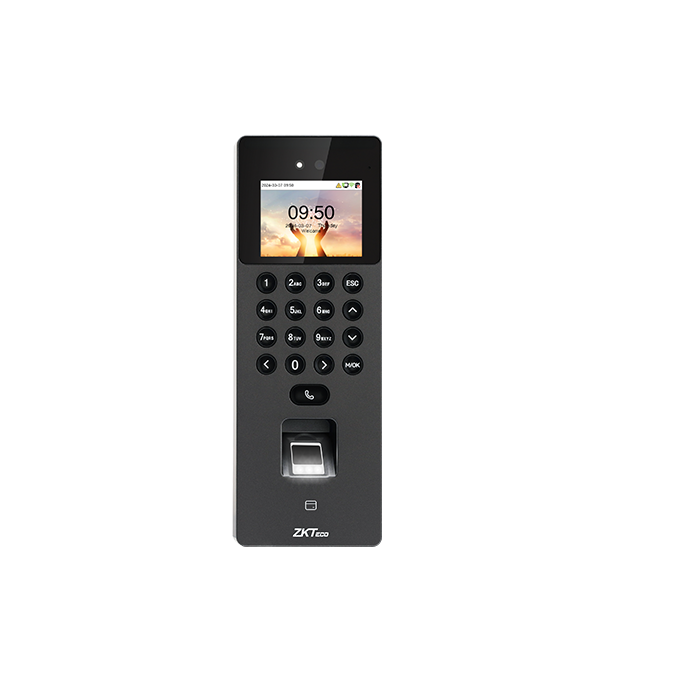

F09 adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate anti-spoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.

Category:
Request Quote

Features

  • Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
  • Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
  • HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
  • User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
  • Compatible with wireless doorbell (optional)
  • Simple access control functions (Electric Lock; Door Sensor; Exit Button)
Display

2.4"@ TFT Color LCD Screen (320*240)
User Capacity

3,000 (1:N) (Standard)
Communication

TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
USB: Type A (USB Drive Only )*1
Electric Lock*1, Door Sensor*1, Exit Button*1
Fingerprint Capacity

3,000 (1:N) (Standard)
Authentication Method

Fingerprint / Face / Card / Password (Physical Keypad)
Camera

WDR Binocular Camera @ 1MP
Card Type

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Face Capacity

1,500 (1:N) (Standard)
Hardware

CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32
dB/Impedance: 2.2kΩ)
Supplement Light: Yes
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor
Optional Features

IC Card, Wi-Fi, Wireless Doorbell
Standard Functions

ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access
Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm,
Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0),
ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push
and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Transaction Capacity

150,000 (1:N)
Certifications

ISO14001, ISO9001,CE, FCC, RoHS
Operation System

Linux
