BGM500

BGM500

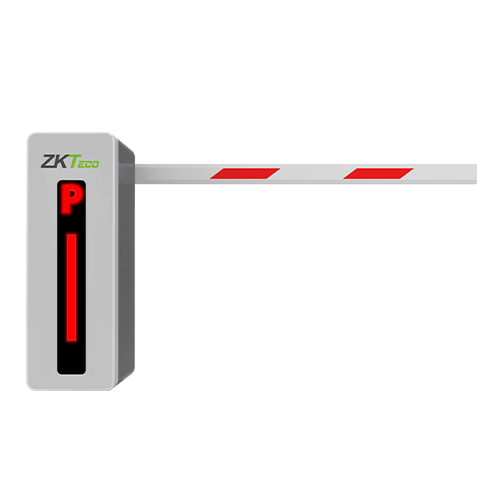

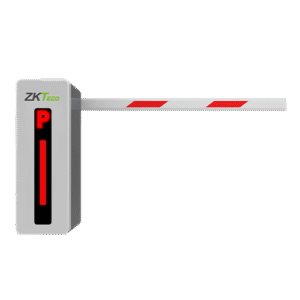

BGM500 series parking barrier adopts streamlined appearance style design, built-in LED indicator; Integrated brushless DC motor gear box all-in-one transmission mechanism and intelligent ZKBarrier mainboard, MCBF can reach 3 million maintenance free. Apply to schools, communities, factories, office buildings and so on.

Model Name	BGM530L/R BGM545L/R BGM560L/R BGM545L/R-LED BGM545L/R-90 BGM545L/R-F
Boom Type	BGM530L/R : Straight boom BGM545L/R : Telescopic boom BGM560L/R : Telescopic boom BGM545L/R-LED : Straight boom with LED BGM545L/R-90 : Folding boom BGM545L/R-F : Fence boom
Boom Arm Length	BGM530L/R : 3m BGM545L/R : 4.5m BGM560L/R : 6m BGM545L/R-LED : 4.5m BGM545L/R-90 : 4.5m BGM545L/R-F : 4.5m
Operating Speed	BGM530L/R : 1.5s BGM545L/R : 2.5s BGM560L/R : 5s BGM545L/R-LED : 2.5s BGM545L/R-90 : 3s BGM545L/R-F : 3s
Chassis Dimensions (mm)	3503021020mm
Motor MCBF	3 million times
Motor Type	DC 24V brushless motor
Protection Level	IP54
Remote Control Distance	≥30m
Power Supply	AC 220V/110V, 50Hz to 60Hz
